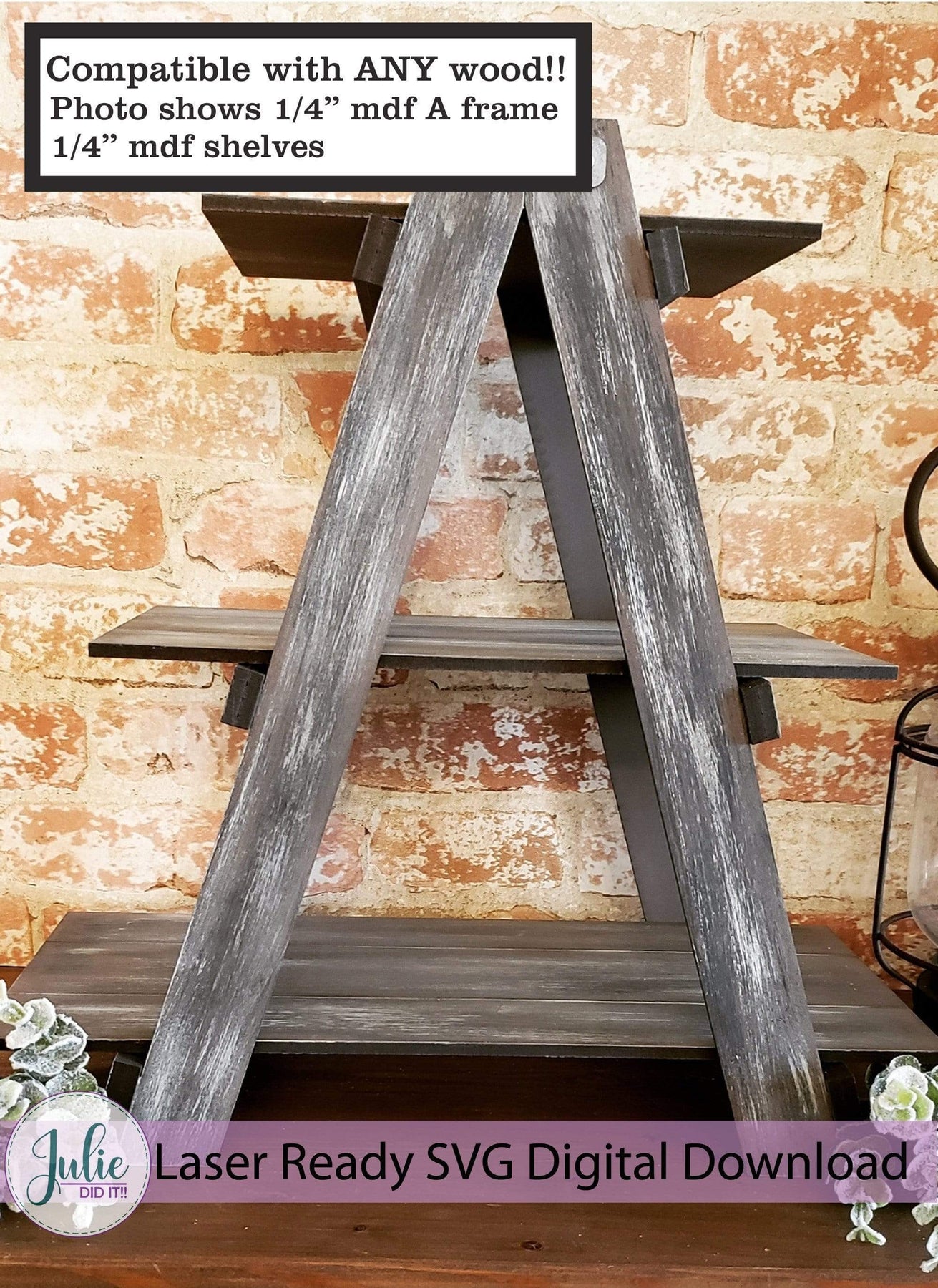

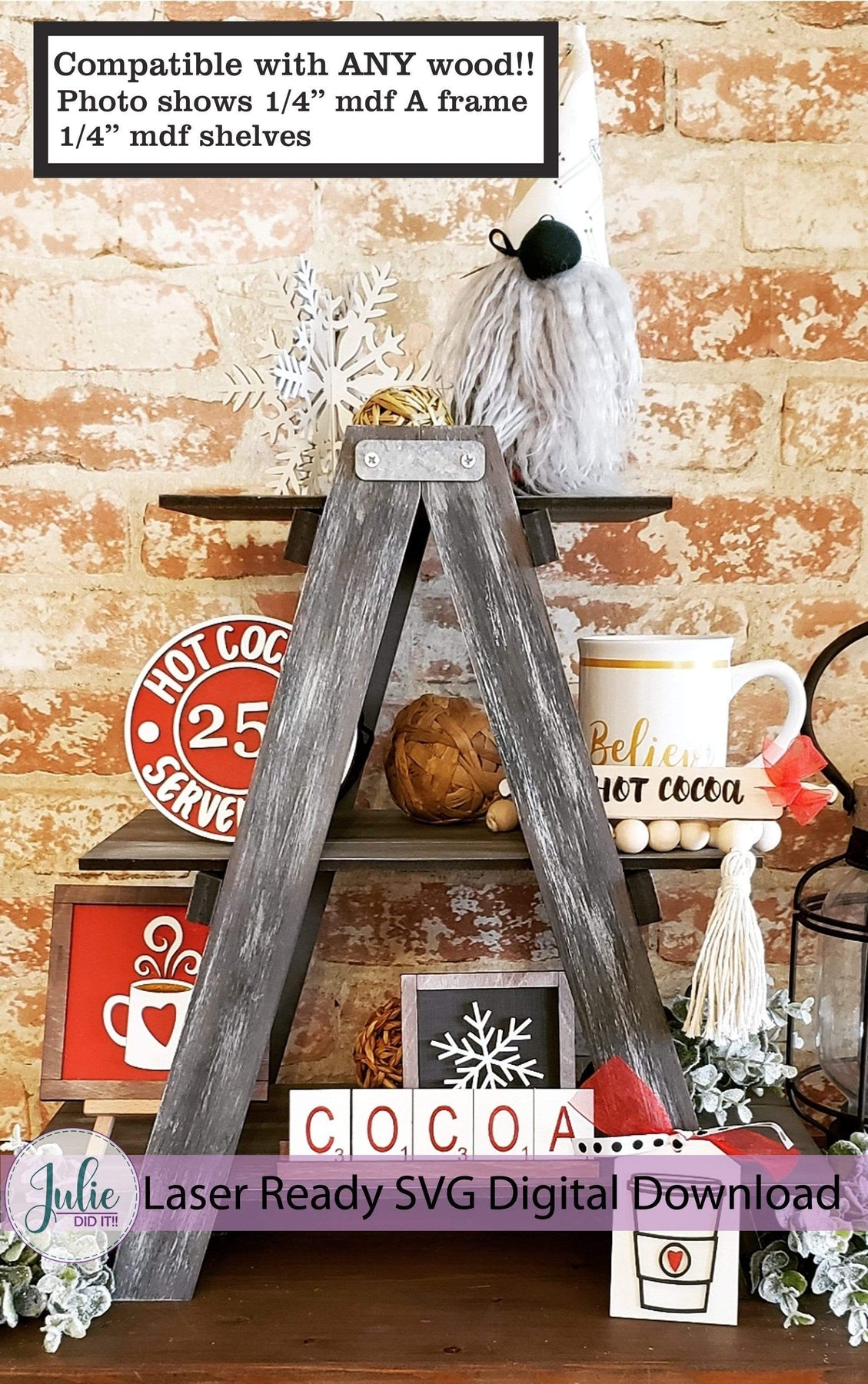

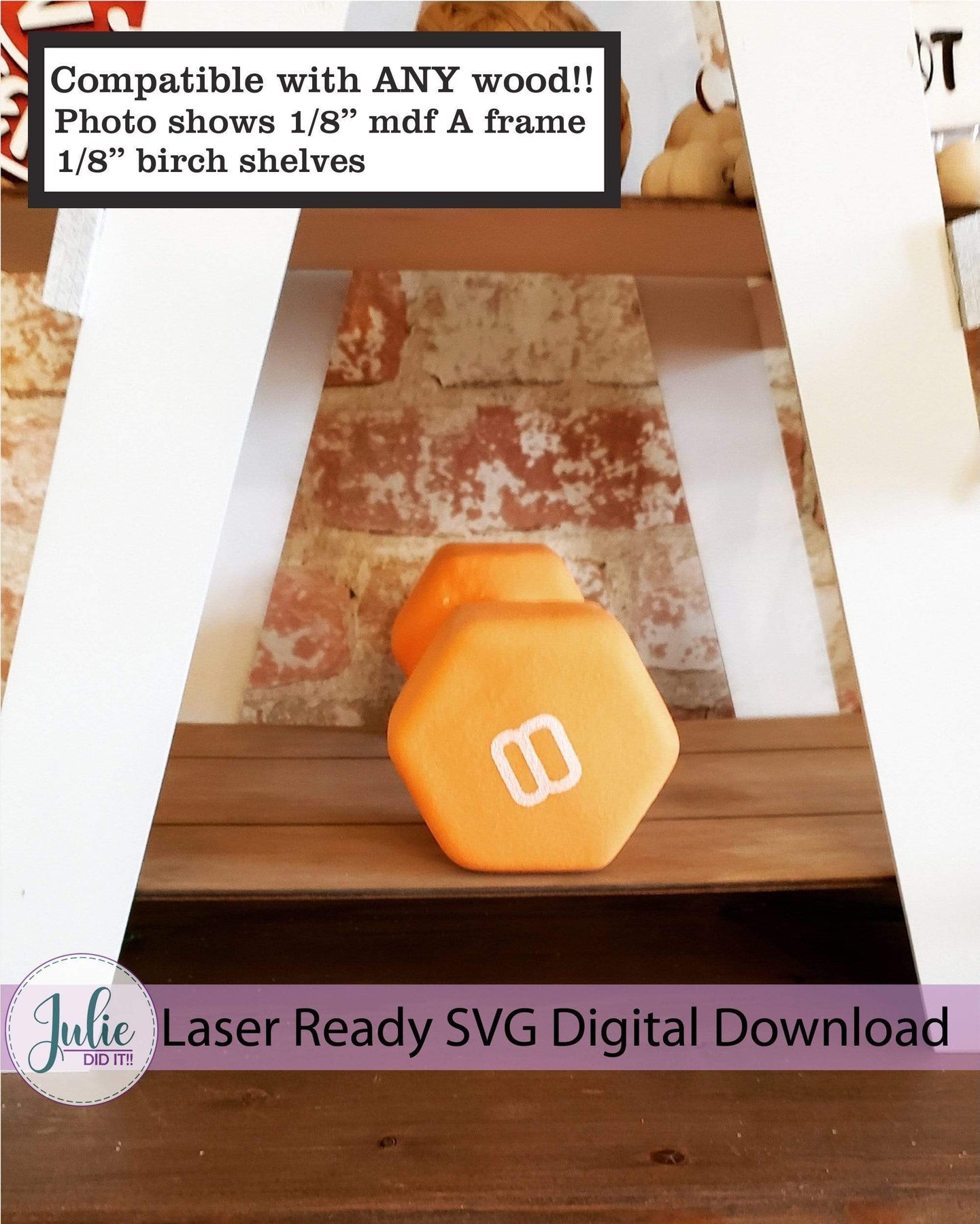

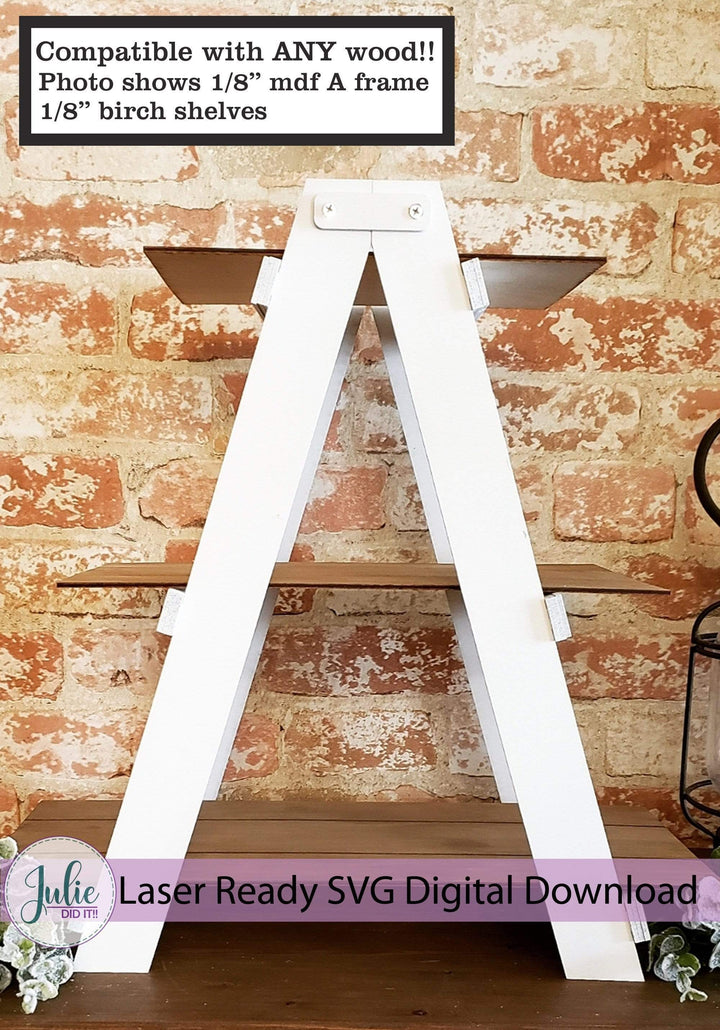

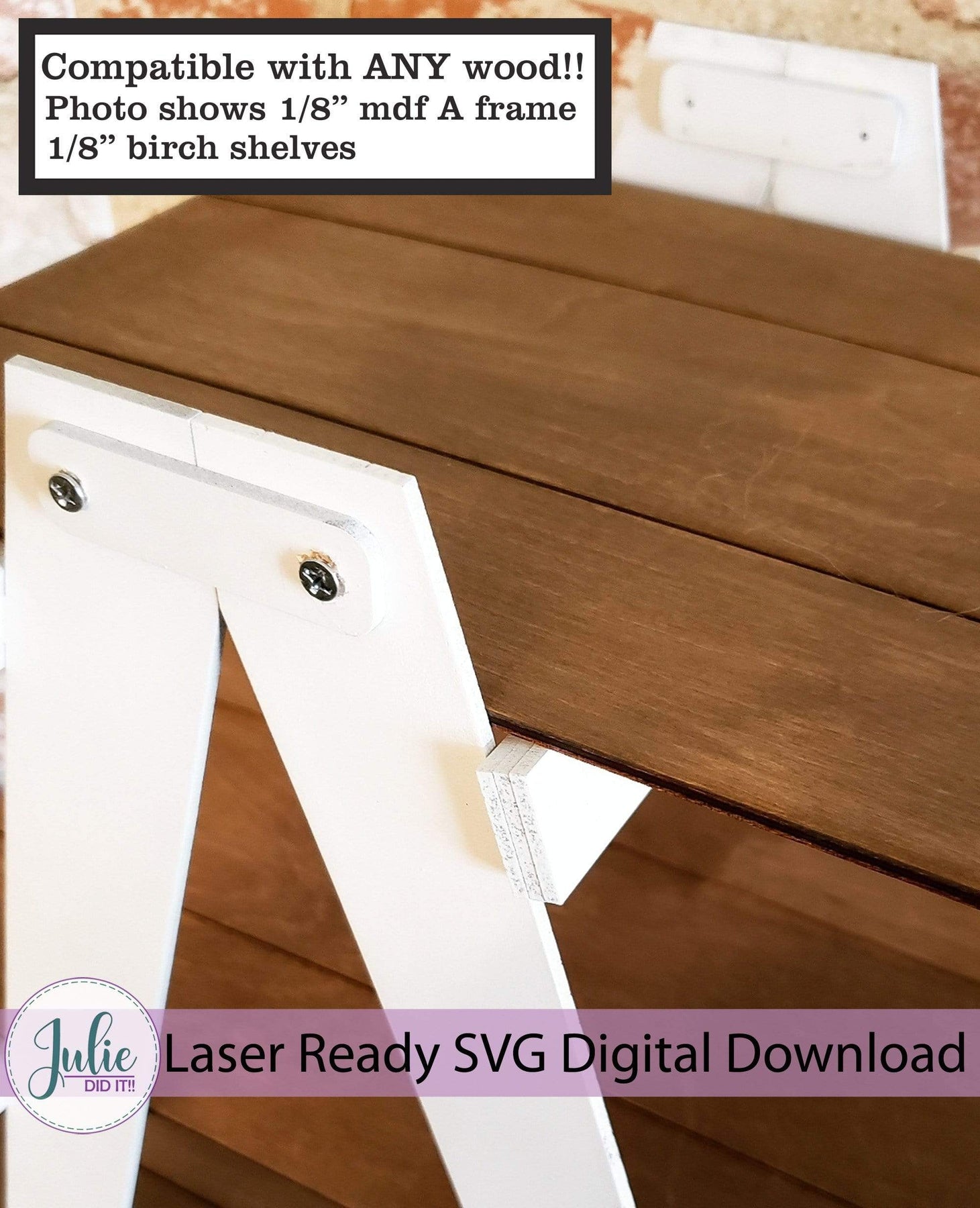

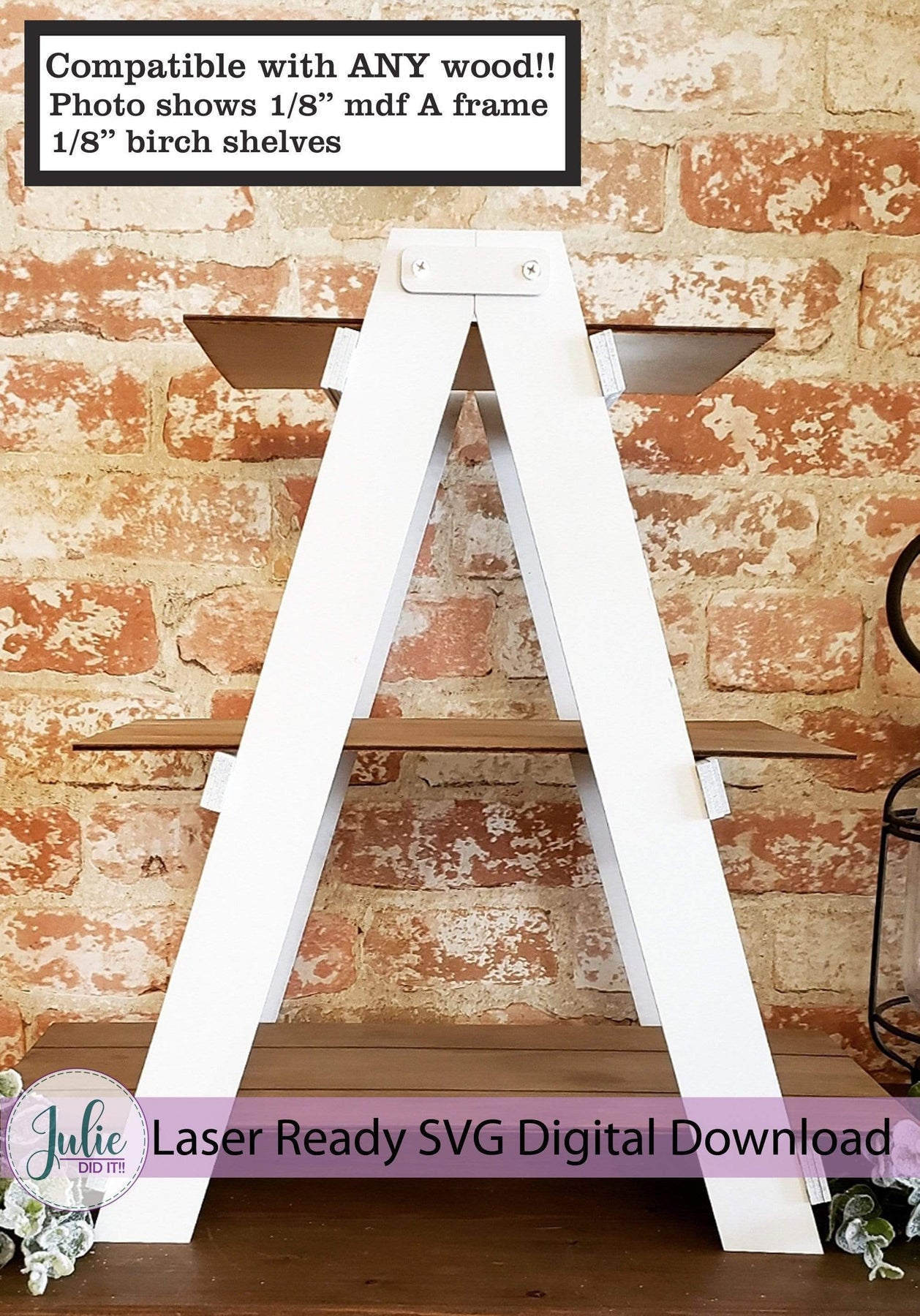

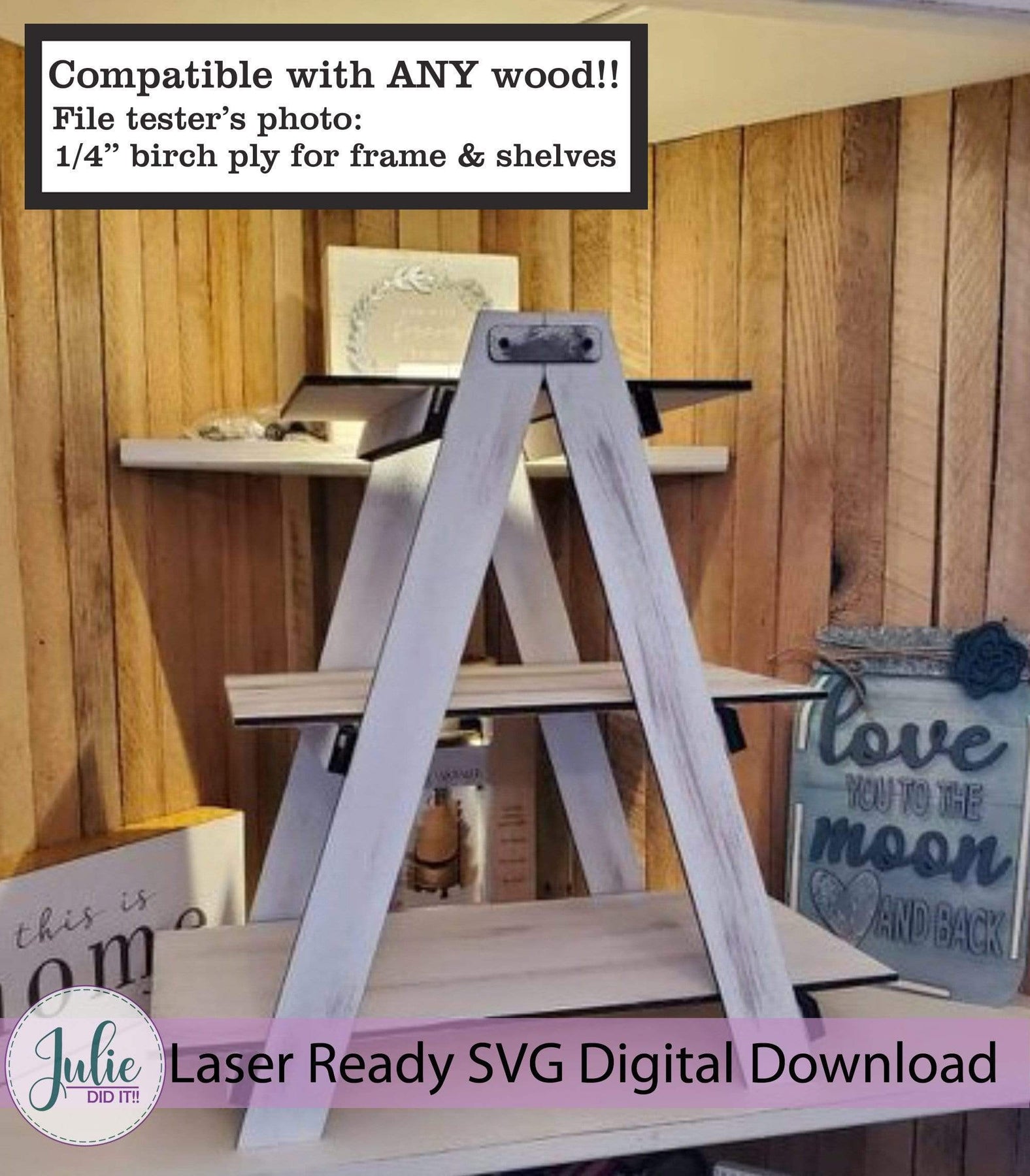

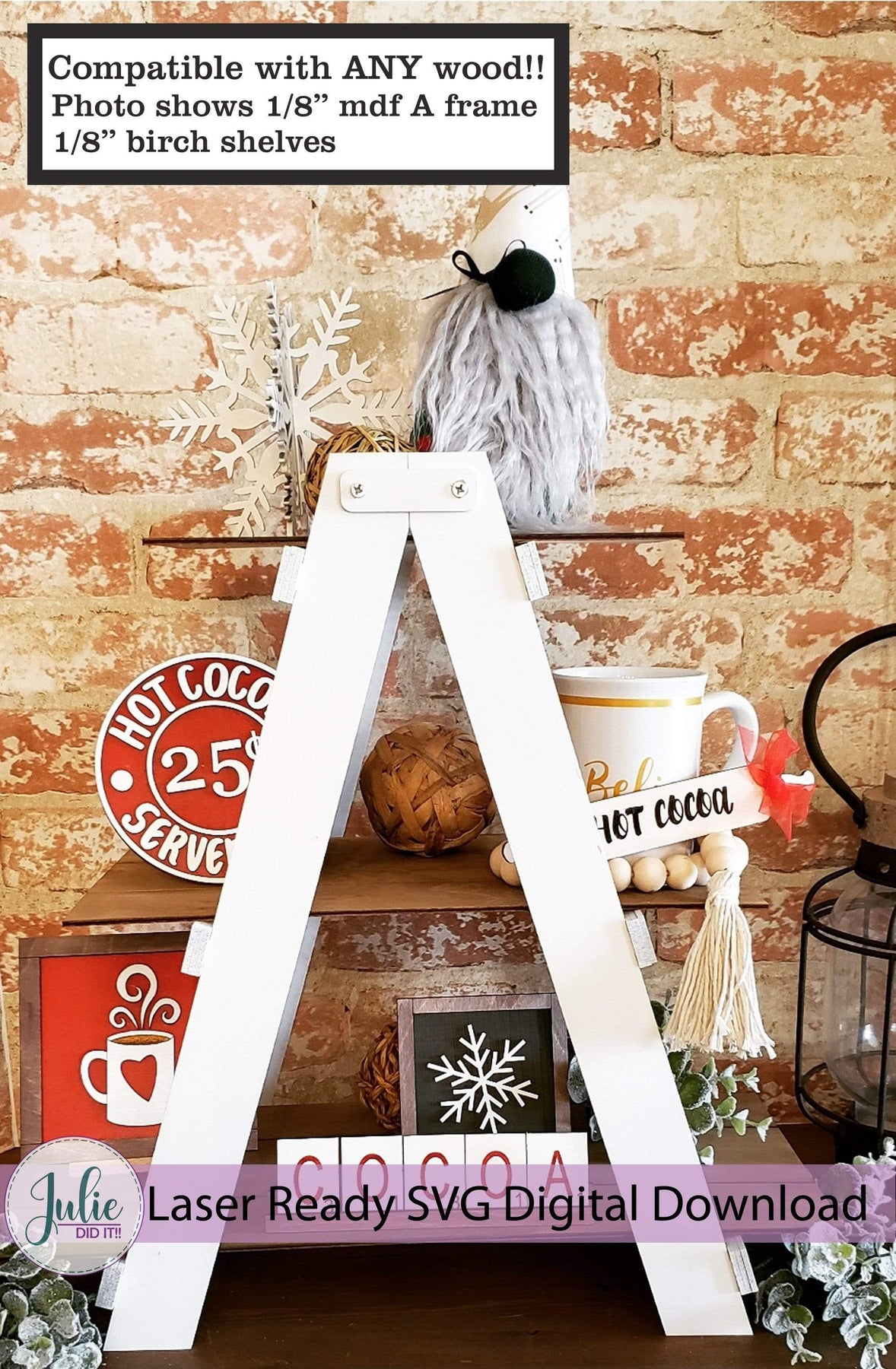

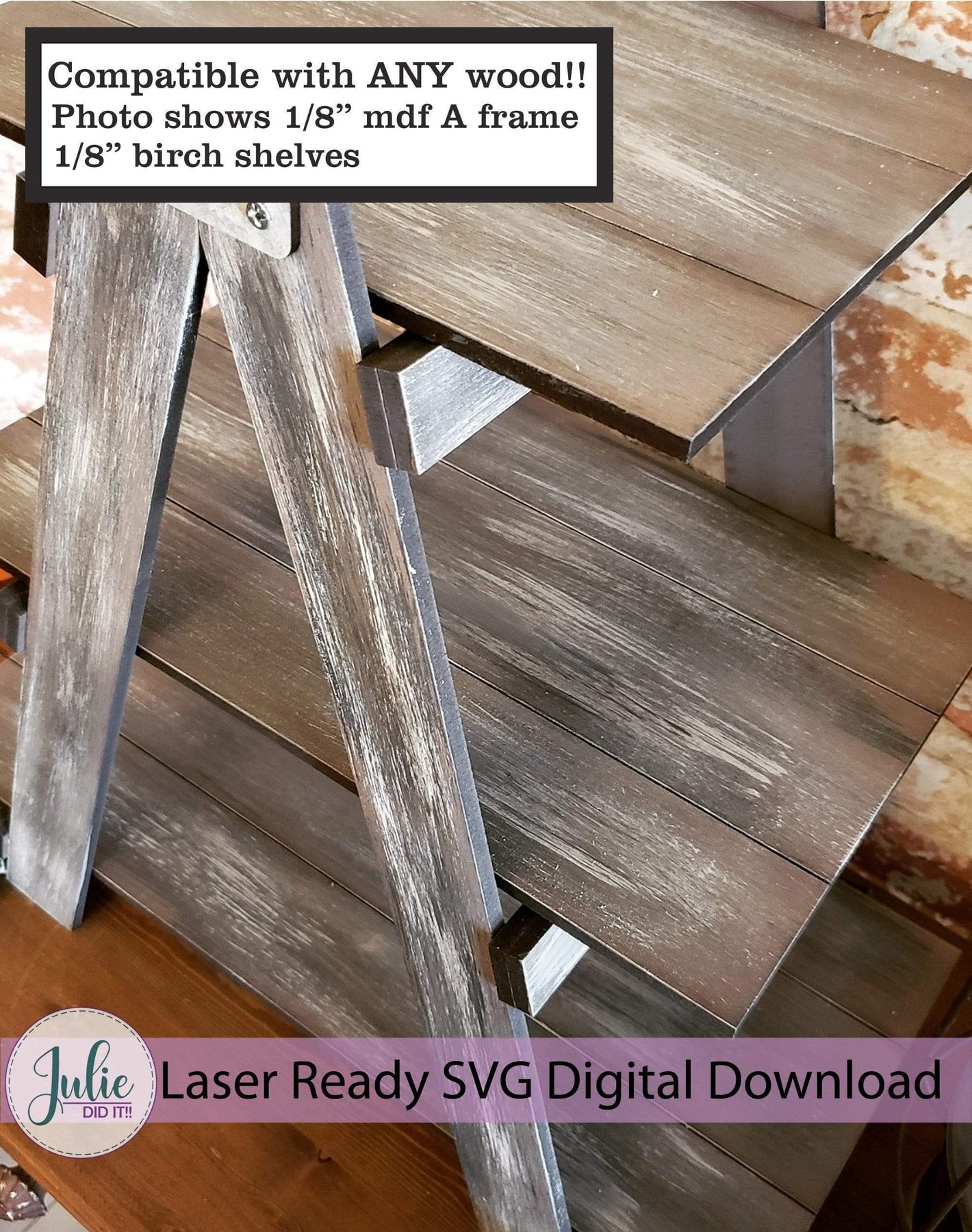

This is a laser ready SVG file download for a three shelf, A-frame, ladder tier tray.

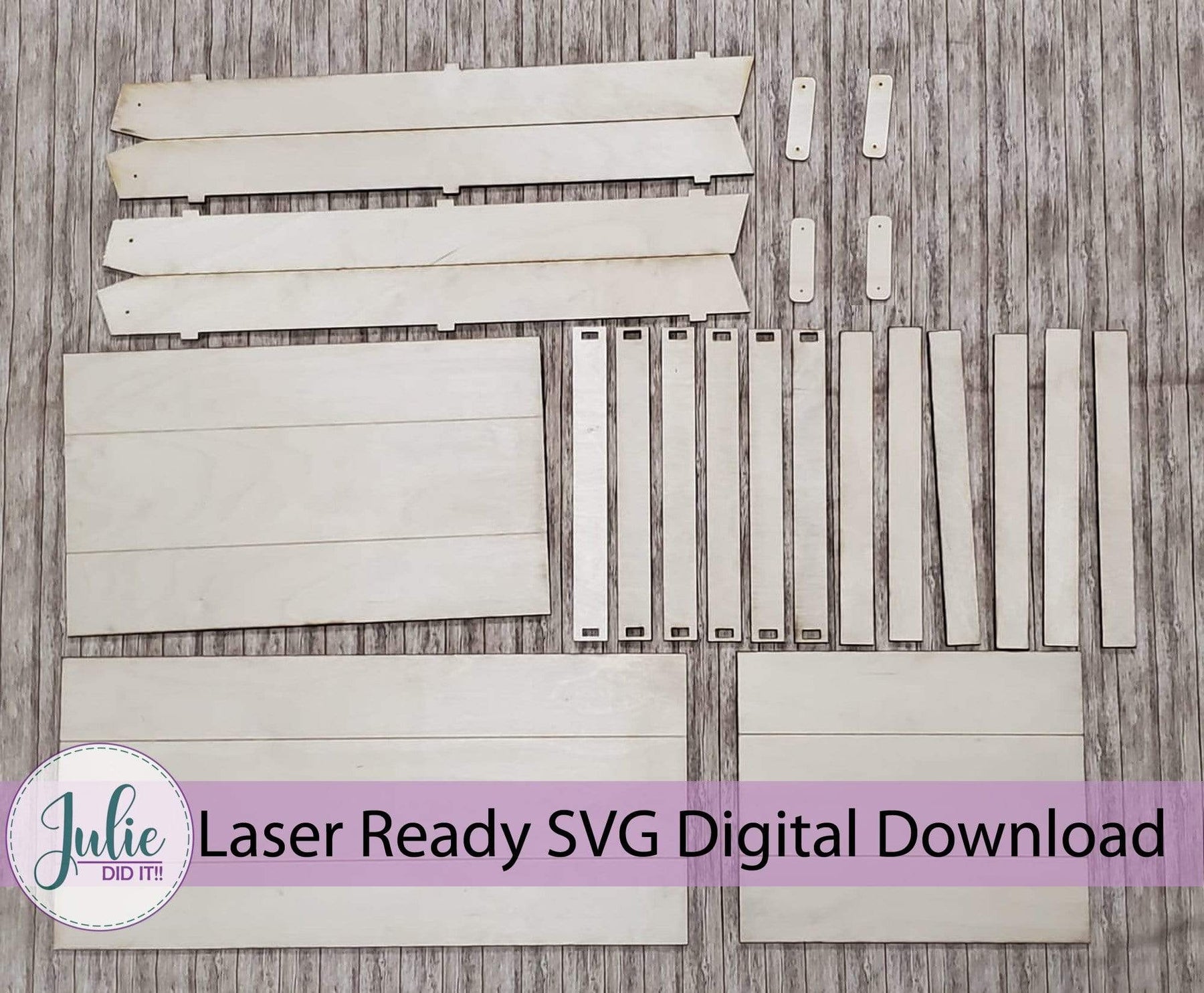

The file includes the A-frame, brackets, three shelves, and multiple rail options depending upon the wood thickness/type you use. It comes with a slot sizer to determine which rail you need to use to match your wood thickness. The PDF instructions are included and detail out the steps you need to take.
Size and Recommended Materials

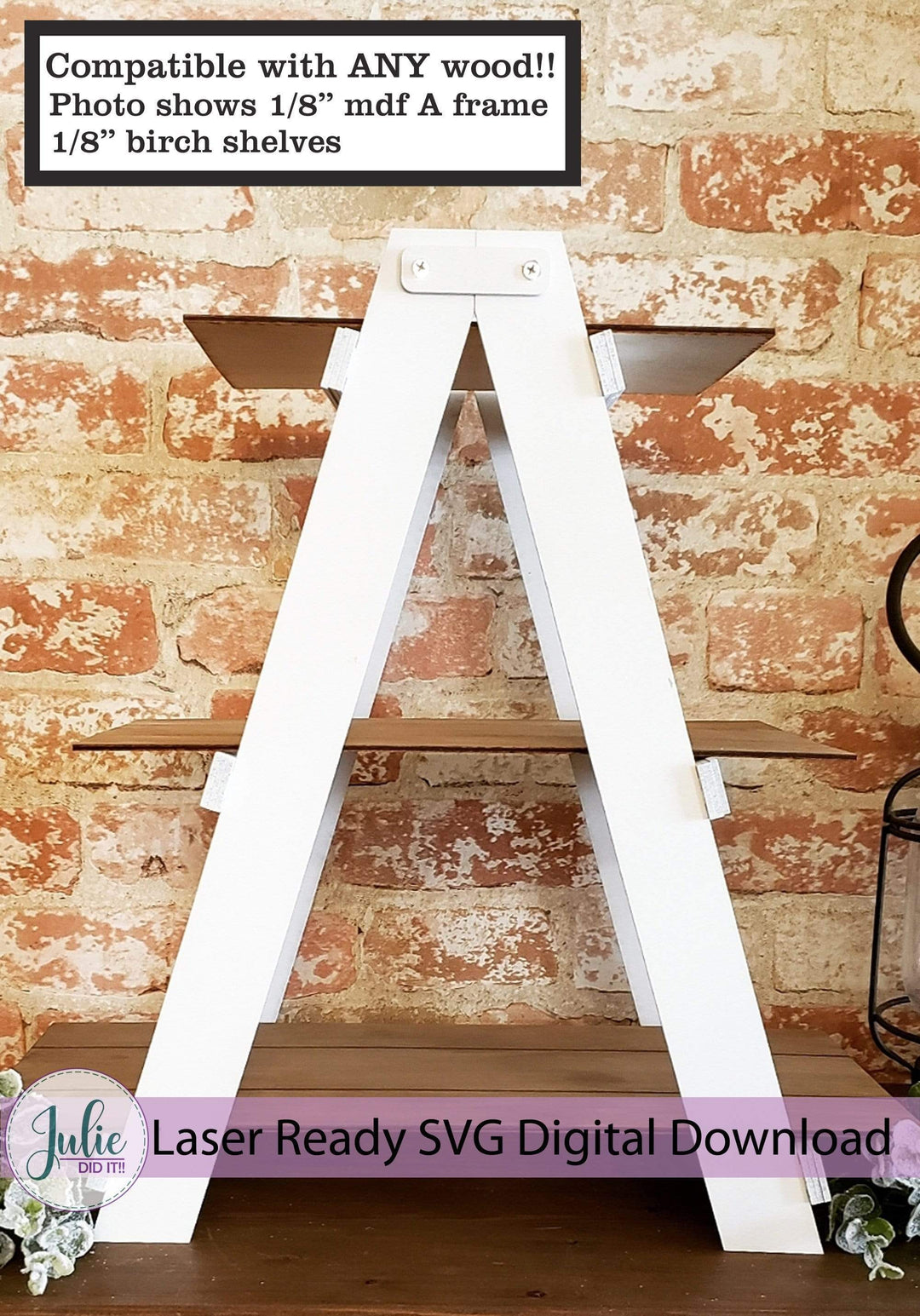

The finished product measures about 17.5" tall x 18" wide (length of bottom shelf) x 9"deep.
It takes 5 sheets of wood to cut a tier tray.
Please join my Facebook group for tips, tutorials and sharing at:
--> Julie Did It Studios (a Glowforge community) <--
Variants
This file download comes in two different options.
- Digital files (SVG and PDF) only, includes seven branded photos ($10.00)
- Digital files (SVG and PDF) along with seven unbranded photos ($11.00)
Feel free to use any of the photos (branded or unbranded) in your own listings to promote your item.
